JDZ10-12R 、 JDZ10-12RV 、 JDZF10-12R 、 JDZF10-12RV
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and full-enclosed construction, is widely
used for measuring , electric energy and protective
relaying in the single-phase or three phase power system with
the frequency 50Hz or 60Hz and highest voltage for equipment
12kV.
The core adopts advanced cold-rolled silicon steel sheet. High
voltage outgoing line of primary winding was fetched out from top
of the product; outgoing line of secondary winding was fetched
out from transverse side of the product. The product has the
feature of high reliability, low magnetism of core and
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary
Voltage
（kV）
Rated secondary
Voltage
（kV）
Accuracy classes
combination
Rated output
(VA)
Thermal limiting
Output
(VA)
Rated
Insulation level
(kV)
JDZ10-12R(V)
11
0.11
0.2
25
400
12/28/75
0.5
50
1
80
) JDZF10-12R(V)
0.11/0.11
0.2/0.2
10/10
200/200
0.2/0.5
15/30
0.11/0.22
0.2/6P
15/500
500
0.5/6P
30/500

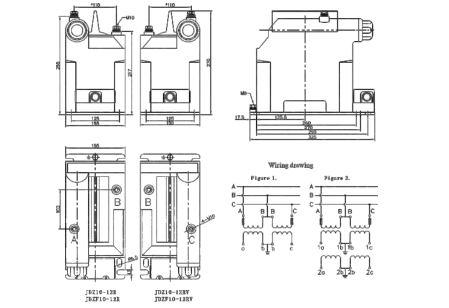

Outline
